15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material

15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material

大画像 :  15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material

商品の詳細:
起源の場所: 中国広州
ブランド名: HYKING
証明: CE ISO
モデル番号: HK-LR200-1
お支払配送条件:
最小注文数量: 1
価格: $8,800
連絡先

15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material

説明
全長: 15.5メートル 重さ: 4250のKG
適切な掘削機: 20トン～25トン コアコンポーネント: 油圧シリンダー
材料: Q345B/Q690D 最高の範囲: 15100のmm
最大切断深さ: 11340mm 最大切断高さ: 12510mm
折り畳み高さ: 2980mm バケツの容積: 0.6 m3
掘削機のトナージュ: 16~22トン 総自重: 4150kg
縫い目の角度: 45度
ハイライト:

15.5 Meters Super Long Reach Excavator Boom

,

Q345B/Q690D Material Excavator Extension Arm

,

20ton-25ton Suitable Material Handling Arm

15.5 Meters Super Long Reach Excavator Boom and Arm Suit for Dredging River Subway Construction
Long reach boom systems provide extensive work range, making them ideal for dredging rivers, port construction, and subway projects. These attachments enhance efficiency and safety for excavator operators. We offer customized long reach boom solutions tailored to specific project requirements.

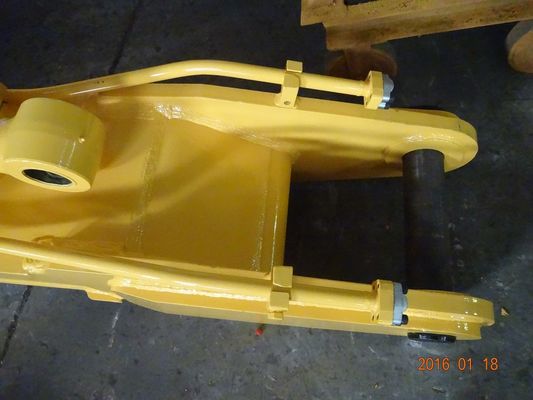

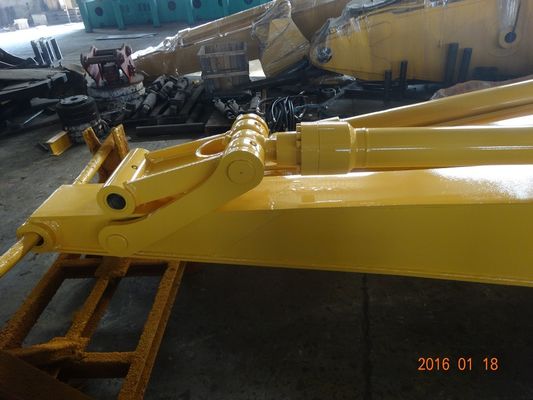

15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 0
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 1
Key Features
  1. Compatible with all excavator models
  2. Complete package includes: bucket, linkage, bucket cylinder, oil pipes/hoses, pins, and lubricating system
  3. Multiple material options available (Q345B, Q690D, Weldox) to suit different applications
  4. Two-piece boom design for cost-effective container shipping
  5. 45-degree tapered seams for superior welding quality
  6. Six-month warranty included
  7. Reinforced construction with thicker plates for heavy-duty applications
  8. Optional boom and arm cylinders available
  9. Custom pipeline configurations for specialized applications
  10. Capable of producing booms up to 32m for large excavators like Hitachi EX3500
Technical Specifications
Model LR120 LR200-1 LR200-2 LR300 LR350-1 LR350-2 LR450
Total length(mm) 13000 15380 18000 18000 20000 22000 24000
Total self weight(kg) 3000 4150 4400 5200 6000 6500 7000
Max reach(mm) 12500 15100 17600 17600 19600 21600 23600
Max cut depth(mm) 9000 11340 12200 12200 14500 16100 18000
Max cut height(mm) 11300 12510 13500 13720 14920 16100 17300
Folding height(mm) 2900 2980 3040 3210 3210 3400 3400
Bucket volume(m3) 0.3 0.6 0.4 0.4 0.5 0.6 0.6
Excavator tonnage(ton) 10-15 16-22 20-24 25-33 30-36 30-40 40-50
Product Gallery

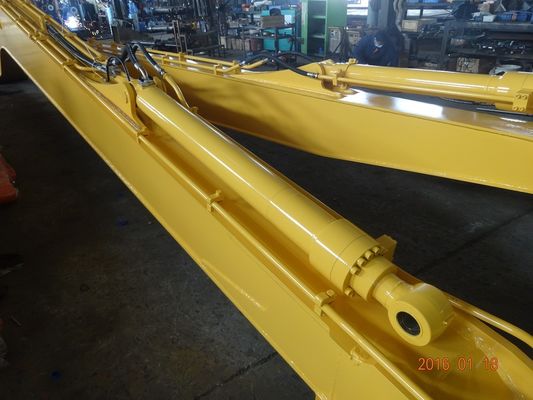

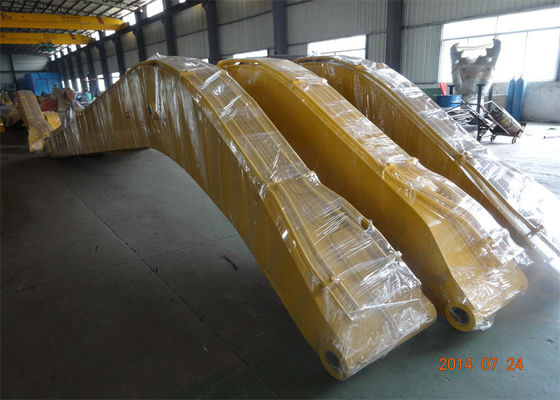

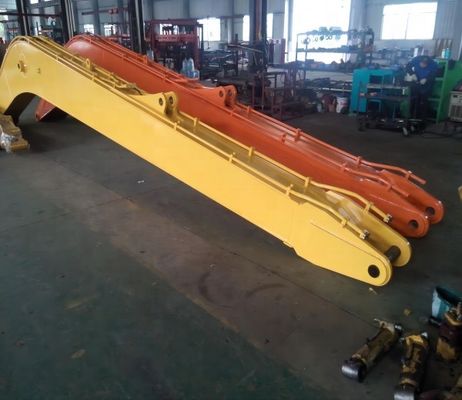

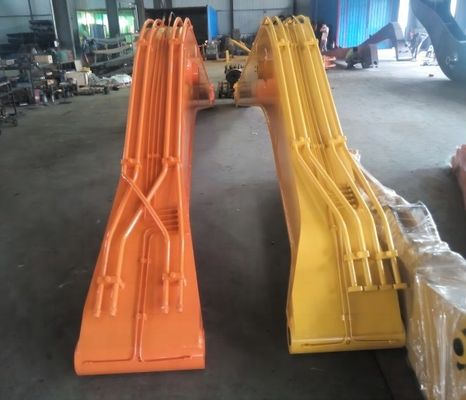

15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 2
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 3
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 4
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 5
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 6
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 7
Bucket Options
We offer a comprehensive range of specialized buckets for various applications:
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 8
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 9
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 10
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 11
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 12
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 13
Our Advantages
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 14
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 15
Customization Services
We maintain detailed specifications for most excavator models and can customize long reach booms to match your exact equipment requirements.
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 16
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 17
Engineering Excellence
All our designs undergo extensive testing and continuous improvement based on years of field experience.
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 18
15.5 Meters Super Long Reach Excavator Boom and Arm for 20ton-25ton Excavators with Q345B/Q690D Material 19
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are the factory.
Q: How long is your delivery time for long reach boom?
A: 20 days for 1 kit, 30 days for one container (3 kits)
Q: Do you provide parts for maintenance?
A: Yes, we supply detailed parts lists and can provide any necessary replacement components.
Q: What are your payment terms?
A: 30% T/T in advance, balance before shipment.
