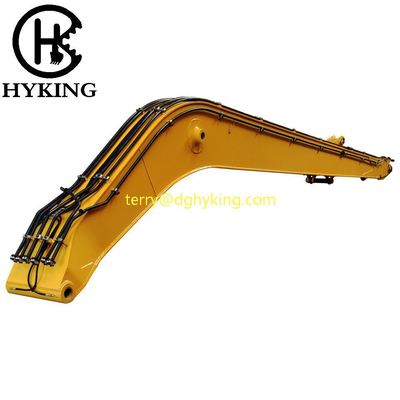

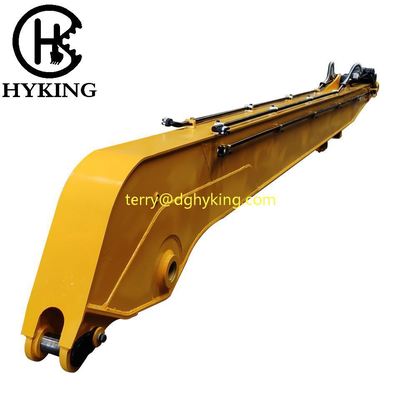

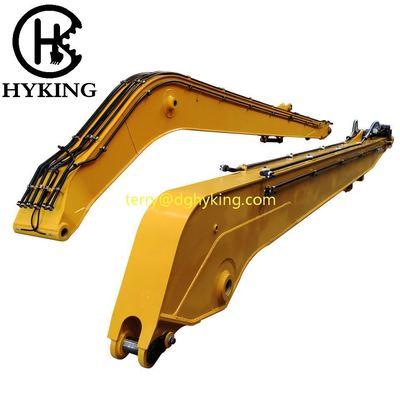

Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging

Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging
Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging

大画像 :  Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging

商品の詳細:
起源の場所: 中国広州
ブランド名: HYKING
お支払配送条件:
最小注文数量: 1
連絡先

Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging

説明
材料: Q345B 全長: 13000-24000 mm
総重量: 3000-7000 kg 最高の範囲: 12500-23600 mm
最大切断深さ: 9000-18000 mm 最大切断高さ: 11300-17300 mm
折り畳み高さ: 2900-3400 mm バケツの容積: 0.3-0.6 m3
掘削機のトナージュ: 10～50トン 選択資料: Q345B、Q690D、Weldox
ブームタイプ: 長いリーチ ブームジョイント: 2（コンテナ輸送の場合）
縫い目の準備: 45度テーパー 保証期間: 6ヶ月
最大ブームの長さ: 32m（日立EX3500の場合）
ハイライト:

Q345B Material Excavator Long Reach Boom

,

32m Long Boom Excavator Long Arm

,

45 Degree Tapered Seam Material Handling Arm

Excavator Long Reach Boom and Arm for Port Dredging
Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 0
Our long reach boom systems provide extensive work range, making them ideal for demanding applications including:
  • River and port dredging operations
  • Port construction projects
  • Subway and underground construction
These systems offer high operational efficiency and safety for excavator operators. We provide fully customized long reach boom solutions tailored to your specific requirements.
Key Features
  • Compatible with all excavator models
  • Standard package includes bucket, linkage, bucket cylinder, oil pipes/hoses, pins, and lubricating system
  • Multiple material options available (Q345B, Q690D, Weldox) to match application requirements
  • Two-piece boom design for cost-effective container shipping
  • Precision 45-degree tapered seams for superior welding quality
  • 6-month warranty coverage
  • Reinforced construction options with thicker plates for heavy-duty applications
  • Optional boom and arm cylinder supply
  • Custom pipeline configurations available for specialized applications
  • Capability to produce booms up to 32m (demonstrated on Hitachi EX3500)
Technical Specifications
Model LR120 LR200-1 LR200-2 LR300 LR350-1 LR350-2 LR450
Total length (mm) 13000 15380 18000 18000 20000 22000 24000
Total weight (kg) 3000 4150 4400 5200 6000 6500 7000
Max reach (mm) 12500 15100 17600 17600 19600 21600 23600
Max cut depth (mm) 9000 11340 12200 12200 14500 16100 18000
Max cut height (mm) 11300 12510 13500 13720 14920 16100 17300
Folding height (mm) 2900 2980 3040 3210 3210 3400 3400
Bucket volume (m³) 0.3 0.6 0.4 0.4 0.5 0.6 0.6
Excavator tonnage (ton) 10-15 16-22 20-24 25-33 30-36 30-40 40-50
Product Gallery
Long Reach Boom and Arm
Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 1
Long Reach Boom
Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 2
Long Reach Arm
Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 3
Bucket Options
Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 4 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 5 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 6 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 7 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 8 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 9 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 10 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 11 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 12 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 13 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 14 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 15 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 16 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 17 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 18 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 19 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 20 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 21 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 22 Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 23
Our Advantages
Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 24
Customization Services
We maintain detailed specifications for most excavator models and can customize long reach boom systems to precisely match your equipment requirements.
Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 25
Proven Design
All our designs undergo extensive testing and continuous improvement based on years of field experience.
Excavator Long Reach Boom and Arm with Q345B Material 32m Long Boom and 45 Degree Tapered Seam for Port Dredging 26
Comprehensive Support
We provide detailed parts lists and technical documentation to simplify maintenance and after-sales service.
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are the factory.
Q: What is your delivery time for long reach booms?
A: 20 days for 1 kit, 30 days for one container (3 kits).
Q: Do you provide maintenance parts?
A: Yes, we supply exploded parts diagrams and can provide any required replacement components.
Q: What are your payment terms?
A: 30% T/T deposit with balance paid before shipment.
